SPECIFICATIONS
| POWER TYPE | Electric |
| BUILDER | BR Doncaster OR English Electric Newton Le Willows |
| WHEEL ARRANGEMENT | Bo-Bo |
| WHEELBASE | 43ft 6in |
| DIMENSIONS | H-13ft 0.5 in/ L-58ft. 6in/ W-8ft 8.25in |
| WEIGHT | 85 ton |
| WHEEL DIAMETER | 3ft. 9.25in |
| ENGINE/MOTOR | 4 x Associated Electrical Industries 282AZ |
| TRAIN BRAKES | Dual Rheostatic |
| BRAKE FORCE | 40 tonnes |
| FUEL CAPACITY | - |
| POWER OUTPUT | 3600 hp |
| TRACTIVE EFFORT | 58000lb |
| MAX SPEED | 100mph, then reduced to 80mph |
| BUILT / WITHDRAWN | 1965-66 | No. BUILT | 100 |
SUB CLASSES
| 86/0 | No Modifications, as above - all 86/0 were modified and renumbered |
| 86/1 | Modified in 1972. - Fitted with flexicoil suspension - Power output 5000hp, speed now 110mph |
| 86/2 | Modified 1972-75, Flexicoil suspension, SAB Wheels, AEI 282BZ Motors |
| 86/3 | modified 86/0 to include SAB and 100mph |
| 86/4 | modified from 86/2 to give 3600hp, fitted with RCH TDM ( Time Division Multiplexing |
| 86/5 | Modified - 2000, Conversion of 86/6 with revised gearing to provide improved traction |
| 86/6 | Modified 2000, As 86/2 but Freightliner Locomotives on Air brakes only 75mph maximum |
| 86/7 | Modified 2009, As 86/2 with maximum speed 110mph |
| 86/9 | Rebuilt, as 86/2 with Electric Train Supply isolated and Max Speed 60mph |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|
| 86/1 | E3191 | 86201 | 86101 | Commercial | E3191 - 86201 - 86101 | ||
| 86/1 | E3150 | 86202 | 86102 | Scrapped | E3150 - 86202 - 86102 | ||

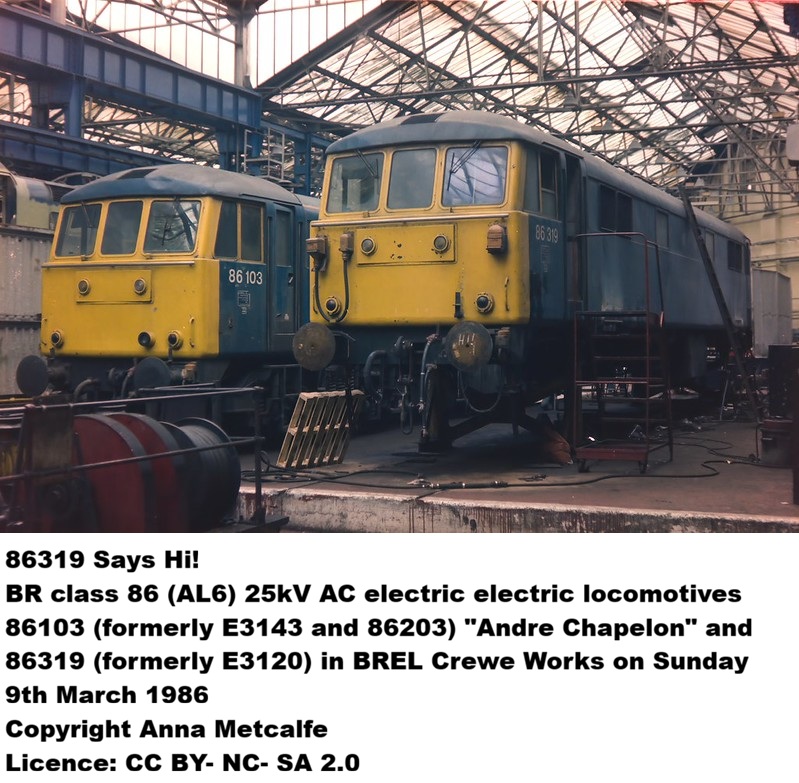

| 86/1 | E3143 | 86203 | 86103 | Scrapped | E3143 - 86203 - 86103 | ||
| 86/2 | E3173 | 86204 | Scrapped | E3173 - 86204 | |||
| 86/2 | E3184 | 86206 | Scrapped | E3184 - 86206 | |||
| 86/2 | E3179 | 86207 | Scrapped | E3179 - 86207 | |||
| 86/2 | E3141 | 86208 | Scrapped | E3141 - 86208 | |||
| 86/2 | E3125 | 86209 | Scrapped | E3125 - 86209 | |||
| 86/2 | E3147 | 86211 | Scrapped | E3147 - 86211 | |||
| 86/2 | E3151 | 86212 | Scrapped | E3151 - 86212 | |||
| 86/2 | E3193 | 86213 | Exported | E3193 - 86213 | |||
| 86/2 | E3106 | 86214 | Scrapped | E3106 - 86214 | |||
| 86/2 | E3165 | 86215 | Exported | E3165 - 86215 | |||
| 86/2 | E3166 | 86216 | Scrapped | E3166 - 86216 | |||
| 86/2 | E3177 | 86504 | 86217 | Exported | E3177 - 86504 - 86217 | ||
| 86/2 | E3175 | 86218 | Exported | E3175 - 86218 | |||
| 86/2 | E3196 | 86219 | Scrapped | E3196 - 86219 | |||
| 86/2 | E3156 | 86220 | Scrapped | E3156 - 86220 | |||
| 86/2 | E3132 | 86221 | Scrapped | E3132 - 86221 | |||
| 86/2 | E3131 | 86502 | 86222 | Scrapped | E3131 - 86222 | ||
| 86/2 | E3158 | 86223 | Scrapped | E3158 - 86223 | |||
| 86/2 | E3134 | 86224 | Scrapped | E3134 - 86224 | |||
| 86/2 | E3164 | 86225 | Scrapped | E3164 - 86225 | |||
| 86/2 | E3162 | 86226 | Scrapped | E3162 - 86226 | |||
| 86/2 | E3117 | 86227 | Scrapped | E3117 - 86227 | |||
| 86/2 | E3167 | 86228 | Exported | E3167 - 86228 | |||
| 86/2 | E3119 | 86229 | Scrapped | E3119 - 86229 | |||
| 86/2 | E3168 | 86230 | Scrapped | E3168 - 86230 | |||
| 86/2 | E3126 | 86231 | Exported | E3126 - 86231 | |||
| 86/2 | E3113 | 86232 | Exported | E3113 - 86232 | |||
| 86/2 | E3172 | 86506 | 86233 | Exported | E3172 - 86506 - 86233 | ||
| 86/2 | E3155 | 86234 | Exported | E3155 - 86234 | |||
| 86/2 | E3194 | 86235 | Exported | E3194 - 86235 | |||
| 86/2 | E3133 | 86236 | Scrapped | E3133 - 86236 | |||
| 86/2 | E3197 | 86237 | Scrapped | E3197 - 86237 | |||
| 86/2 | E3116 | 86238 | Scrapped | E3116 - 86238 | |||
| 86/2 | E3169 | 86507 | 86239 | Scrapped | E3169 - 86507 - 86239 | ||
| 86/2 | E3127 | 86240 | Scrapped | E3127 - 86240 | |||
| 86/2 | E3121 | 86508 | 86241 | Scrapped | E3121 - 86508 - 86241 | ||
| 86/2 | E3138 | 86242 | Exported | E3138 - 86242 | |||
| 86/2 | E3181 | 86243 | Scrapped | E3181 - 86243 | |||
| 86/2 | E3178 | 86244 | Scrapped | E3178 - 86244 | |||
| 86/2 | E3182 | 86245 | Scrapped | E3182 - 86245 | |||
| 86/2 | E3149 | 86505 | 86246 | Scrapped | E3149 - 86505 - 86246 | ||
| 86/2 | E3192 | 86247 | Scrapped | E3192 - 86247 | |||
| 86/2 | E3107 | 86248 | Exported | E3107 - 86248 | |||
| 86/2 | E3161 | 86249 | Scrapped | E3161 - 86249 | |||
| 86/2 | E3189 | 86250 | Exported | E3189 - 86250 | |||
| 86/2 | E3183 | 86251 | Scrapped | E3183 - 86251 | |||
| 86/2 | E3101 | 86252 | Scrapped | E3101 - 86252 | |||
| 86/2 | E3142 | 86047 | 86254 | Scrapped | E3142 - 86047 - 86254 | ||
| 86/2 | E3154 | 86042 | 86255 | Scrapped | E3154 - 86042 - 86255 | ||
| 86/2 | E3135 | 86040 | 86256 | Scrapped | E3135 - 86040 - 86256 | ||
| 86/2 | E3139 | 86043 | 86257 | Scrapped | E3139 - 86043 - 86257 | ||
| 86/2 | E3137 | 86045 | 86259 | Preservation | E3137 - 86045 - 86259 | ||
| 86/2 | E3118 | 86041 | 86261 | Scrapped | E3118 - 86041 - 86261 | ||
| 86/4 | E3199 | 86001 | 86401 | Commercial | E3199 - 86001 - 86401 | ||
| 86/4 | E3109 | 86016 86316 86616 |
86416 | Scrapped | E3109 - 86016 - 86316 - 86616 - 86416 | ||
| 86/4 | E3146 | 86017 86317 |
86417 | Scrapped | E3146 - 86017 - 86317 - 86417 | ||
| 86/4 | E3120 | 86019 86319 |
86419 | Scrapped | E3120 - 86019 - 86319 - 86419 | ||
| 86/4 | E3111 | 86024| 86424 |
Exported |
E3111 - 86024 - 86324 - 86424 |
| ||
| 86/4 | E3186 | 86025 86325 |
86425 | Scrapped | E3186 - 86025 - 86325 - 86425 | ||
| 86/4 | E3195 | 86026 86326 |
86426 | Scrapped | E3195 - 86026 - 86326 - 86426 | ||
| 86/4 | E3200 | 86029 86329 |
86429 | Scrapped | E3200 - 86029 - 86329 - 86429 | ||
| 86/4 | E3105 | 86030 | 86430 | Scrapped | E3105 - 86030 - 86430 | ||
| 86/6 | E3170 | 86002 86402 |
86602 | Scrapped | E3170 - 86002 - 86402 - 86602 | ||
| 86/6 | E3115 | 86003 86403 |
86603 | Scrapped | E3115 - 86003 - 86403 - 86603 | ||
| 86/6 | E3103 | 86004 86404 |
86604 | Exported | E3103 - 86004 - 86404 - 86604 | ||
| 86/6 | E3185 | 86005 86405 |
86605 | Exported | E3185 - 86005 - 86405 - 86605 | ||
| 86/6 | E3112 | 86006 86406 |
86606 | Scrapped | E3112 - 86006 - 86406 - 86606 | ||
| 86/6 | E3176 | 86007 86407 |
86607 | Exported | E3176 - 86007 - 86407 - 86607 | ||
| 86/6 | E3180 | 86008 86408 86501 |
86608 | Exported | E3176 - 86008 - 86408 - 86501 - 86608 | ||
| 86/6 | E3102 | 86009 86409 |
86609 | Exported | E3102 - 86009 - 86409 - 86609 | ||
| 86/6 | E3104 | 86010 86410 |
86610 | Exported | E3104 - 86010 - 86410 - 86610 | ||
| 86/6 | E3171 | 86011 86311 86411 |
86611 | Scrapped | E3171 - 86011 - 86311 - 86411 - 86607 | ||
| 86/6 | E3122 | 86012 86312 86412 |
86612 | Exported | E3122 - 86012 - 86312 - 86412 - 86612 | ||
| 86/6 | E3128 | 86013 86313 86413 |
86613 | Exported | E3128 - 86013 - 86313 - 86413 - 86613 | ||
| 86/6 | E3145 | 86014 86314 86414 |
86614 | Exported | E3145 - 86014 - 86314 - 86414 - 86614 | ||
| 86/6 | E3123 | 86015 86315 86415 |
86615 | Scrapped | E3123 - 86015 - 86315 - 86415 - 86615 | ||
| 86/6 | E3163 | 86018 86318 86418 |
86618 | Scrapped | E3163 - 86018 - 86318 - 86418 - 86618 | ||
| 86/6 | E3114 | 86020 86320 86420 |
86620 | Scrapped | E3114 - 86020 - 86320 - 86420 - 86620 | ||
| 86/6 | E3157 | 86021 86321 86421 |
86621 | Scrapped | E3157 - 86021 - 86321 - 86421 - 86621 | ||
| 86/6 | E3174 | 86022 86322 86422 |
86622 | Exported | E3174 - 86022 - 86322 - 86422 - 86622 | ||
| 86/6 | E3152 | 86023 86323 86423 |
86623 | Scrapped | E3152 - 86023 - 86323 - 86423 - 86623 | ||
| 86/6 | E3110 | 86027 86327 86427 |
86627 | Exported | E3110 - 86027 - 86327 - 86427 - 86627 | ||
| 86/6 | E3159 | 86028 86328 86428 |
86628 | Exported | E3159 - 86028 - 86328 - 86428 - 86628 | ||
| 86/6 | E3188 | 86031 86431 |
86631 | Scrapped | E3114 - 86020 - 86320 - 86420 - 86620 | ||
| 86/6 | E3148 | 86032 86432 |
86632 | Exported | E3148 - 86032 - 86432 - 86632 | ||
| 86/6 | E3198 | 86033 86433 |
86633 | Scrapped | E3198 - 86033 - 86433 - 86633 | ||
| 86/6 | E3187 | 86034 86434 |
86634 | Scrapped | E3187 - 86034 - 86434 - 86634 | ||
| 86/6 | E3124 | 86035 86435 |
86635 | Scrapped | E3124 - 86035 - 86435 - 86635 | ||
| 86/6 | E3160 | 86036 86436 |
86636 | Scrapped | E3160 - 86036 - 86436 - 86636 | ||
| 86/6 | E3130 | 86037 86437 |
86637 | Exported | E3130 - 86037 - 86437 - 86637 | ||
| 86/6 | E3108 | 86038 86438 |
86638 | Exported | E3108 - 86038 - 86438 - 86638 | ||
| 86/6 | E3153 | 86039 86439 |
86639 | Exported | E3153 - 86039 - 86439 - 86639 | ||
| 86/7 | E3129 | 86205 86503 |
86701 | Exported | E3129 - 86205 - 86503 - 86701 | ||
| 86/7 | E3144 | 86048 86260 |
86702 | Exported | E3144 - 86048 - 86260 - 86702 | ||
| 86/9 | E3136 | 86044 86253 |
86901 | Scrapped | E3136 - 86044 - 86253 - 86901 | ||
| 86/9 | E3190 | 86210 | 86902 | Scrapped | E3190 - 86210 - 86902 |
