SPECIFICATIONS
| POWER TYPE | Electric |
| BUILDER | British Railways, Doncaster and Crewe |
| WHEEL ARRANGEMENT | Bo-Bo |
| WHEELBASE | 42ft 3in |
| DIMENSIONS | H-13ft. 0.5in/ L-56ft 6in/ W-8ft 8.25in |
| WEIGHT | 83 ton |
| WHEEL DIAMETER | 48in |
| ENGINE | 4 x Associated Electrical Industries 189 |
| TRAIN BRAKES | Vacuum then Dual |
| BRAKE FORCE | 41 tonnes |
| FUEL CAPACITY | |
| POWER OUTPUT | 3200hp |
| TRACTIVE EFFORT | 50000lb |
| MAX SPEED | 100mph |
| BUILT / WITHDRAWN | 1961-64/1983-92 | No. BUILT | 40 |
SUB CLASSES
| 85/0 | No Modifications |
| 85/1 | Modified at Crewe Works 1989-90 for freight only use with speed reduced to 80mph |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|
| 85/0 | E3056 | 85001 | Scrapped | E3056 - 85001 | |||
| 85/0 | E3057 | 85002 | Scrapped | E3057 - 85002 | |||
| 85/1 | E3058 | 85003 | 85113 | Scrapped | E3058 - 85003 - 85113 | ||
| 85/1 | E3059 | 85004 | 85111 | Scrapped | E3059 - 85004 - 85111 | ||
| 85/0 | E3060 | 85005 | Scrapped | E3060 - 85005 | |||

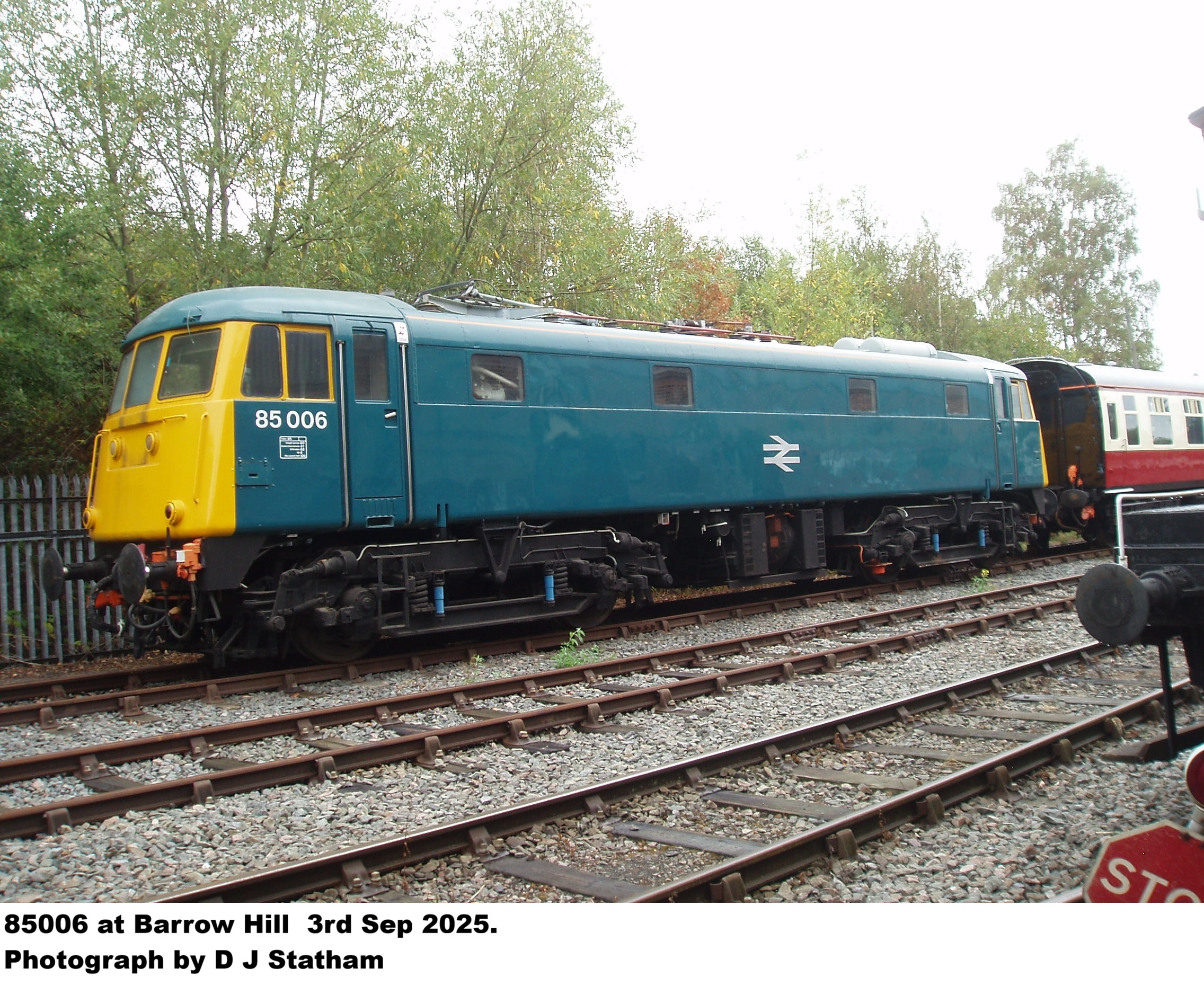

| 85/1 | E3061 | 85006 | 85101 | Preservation | E3061 - 85006 - 85101 | ||
| 85/1 | E3062 | 85007 | 85112 | Scrapped | E3062 - 85007 - 85112 | ||
| 85/0 | E3063 | 85008 | Scrapped | E3063 - 85008 | |||
| 85/1 | E3064 | 85009 | 85102 | Scrapped | E3064 - 85009 - 85102 | ||
| 85/1 | E3065 | 85010 | 85103 | Scrapped | E3065 - 85010 - 85103 | ||
| 85/1 | E3066 | 85011 | 85114 | Scrapped | E3066 - 85011 - 85114 | ||
| 85/1 | E3067 | 85012 | 85104 | Scrapped | E3067 - 85012 - 85104 | ||
| 85/0 | E3068 | 85013 | Scrapped | E3068 - 85013 | |||
| 85/0 | E3069 | 85014 | Scrapped | E3069 - 85014 | |||
| 85/0 | E3070 | 85015 | Scrapped | E3070 - 85015 | |||
| 85/1 | E3071 | 85016 | 85105 | Scrapped | E3071 - 85016 - 85105 | ||
| 85/0 | E3072 | 85017 | Scrapped | E3072 - 85017 | |||
| 85/0 | E3073 | 85018 | Scrapped | E3073 - 85018 | |||
| 85/0 | E3074 | 85019 | Scrapped | E3074 - 85019 | |||
| 85/0 | E3075 | 85020 | Scrapped | E3075 - 85020 | |||
| 85/1 | E3076 | 85021 | 85106 | Scrapped | E3076 - 85021 - 85106 | ||
| 85/0 | E3077 | 85022 | Scrapped | E3077 - 85022 | |||
| 85/0 | E3078 | 85023 | Scrapped | E3078 - 85023 | |||
| 85/1 | E3079 | 85024 | 85107 | Scrapped | E3079 - 85024 - 85107 | ||
| 85/0 | E3080 | 85025 | Scrapped | E3080 - 85025 | |||
| 85/0 | E3081 | 85026 | Scrapped | E3081 - 85026 | |||
| 85/0 | E3082 | 85027 | Scrapped | E3082 - 85027 | |||
| 85/0 | E3083 | 85028 | Scrapped | E3083 - 85028 | |||
| 85/0 | E3084 | 85029 | Scrapped | E3084 - 85029 | |||
| 85/0 | E3085 | 85030 | Scrapped | E3085 - 85030 | |||
| 85/0 | E3086 | 85031 | Scrapped | E3086 - 85031 | |||
| 85/1 | E3087 | 85032 | 85108 | Scrapped | E3087 - 85032 - 85108 | ||
| 85/0 | E3088 | 85033 | Scrapped | E3088 - 85033 | |||
| 85/0 | E3089 | 85034 | Scrapped | E3089 - 85034 | |||
| 85/1 | E3090 | 85035 | 85109 | Scrapped | E3090 - 85035 - 85109 | ||
| 85/1 | E3091 | 85036 | 85110 | Scrapped | E3091 - 85036 - 85110 | ||
| 85/0 | E3092 | 85037 | Scrapped | E3092 - 85037 | |||
| 85/0 | E3093 | 85038 | Scrapped | E3093 - 85038 | |||
| 85/0 | E3094 | 85039 | Scrapped | E3094 - 85039 | |||
| 85/0 | E3095 | 85040 | Scrapped | E3095 - 85040 |
