SPECIFICATIONS
| POWER TYPE | Electric |
| BUILDER | North British Locomotive Co. Glasgow |
| WHEEL ARRANGEMENT | Bo-Bo |
| WHEELBASE | 39ft 6in |
| DIMENSIONS | H-13ft 0.5in/ L- 53ft 6in/ W - 8ft 8.25in |
| WEIGHT | 77 tonnes |
| WHEEL DIAMETER | 4 ft |
| ENGINE | GEC WT 501 |
| TRAIN BRAKES | Vacuum then Dual |
| BRAKE FORCE | 38 tonnes |
| FUEL CAPACITY | --- |
| POWER OUTPUT | 3100hp |
| TRACTIVE EFFORT | 55000lb |
| MAX SPEED | 100mph |
| BUILT / WITHDRAWN | 1960-61/1977-95 | No. BUILT | 10 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|

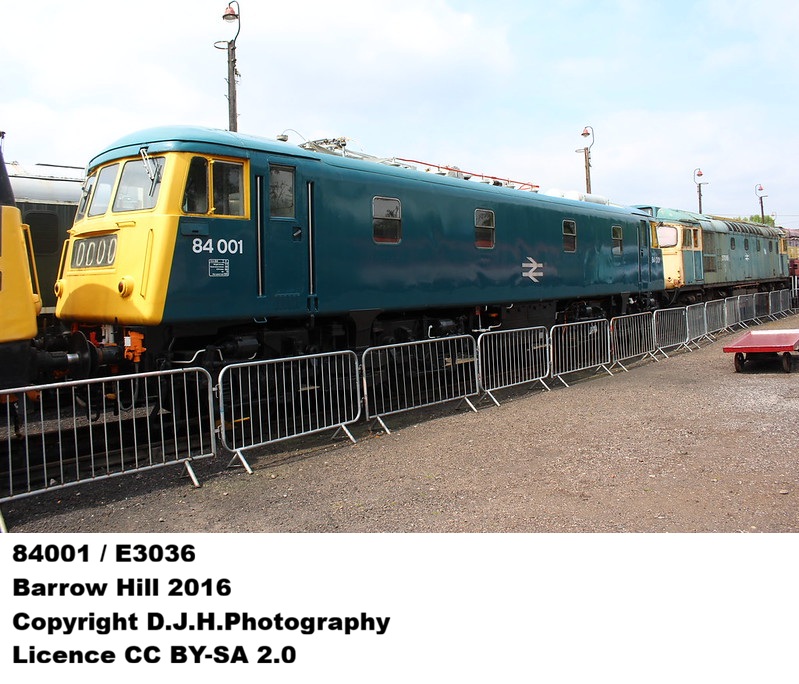

| 84 | E3036 | 84001 | Preservation | E3036 - 84001 | |||
| 84 | E3037 | 84002 | Scrapped | E3037 - 84002 | |||
| 84 | E3038 | 84003 | Scrapped | E3038 - 84003 | |||
| 84 | E3039 | 84004 | Scrapped | E3039 - 84004 | |||
| 84 | E3040 | 84005 | Scrapped | E3040 - 84005 | |||
| 84 | E3041 | 84006 | Scrapped | E3041 - 84006 | |||
| 84 | E3042 | 84007 | Scrapped | E3042 - 84007 | |||
| 84 | E3043 | 84008 | Scrapped | E3043 - 84008 | |||
| 84 | E3044 | 84009 | Scrapped | E3044 - 84009 | |||
| 84 | E3045 | 84010 | Scrapped | E3045 - 84010 |
