CLASS TYPE 56
CLASS 56 - BRUSH / BR / RUSTON Co-Co

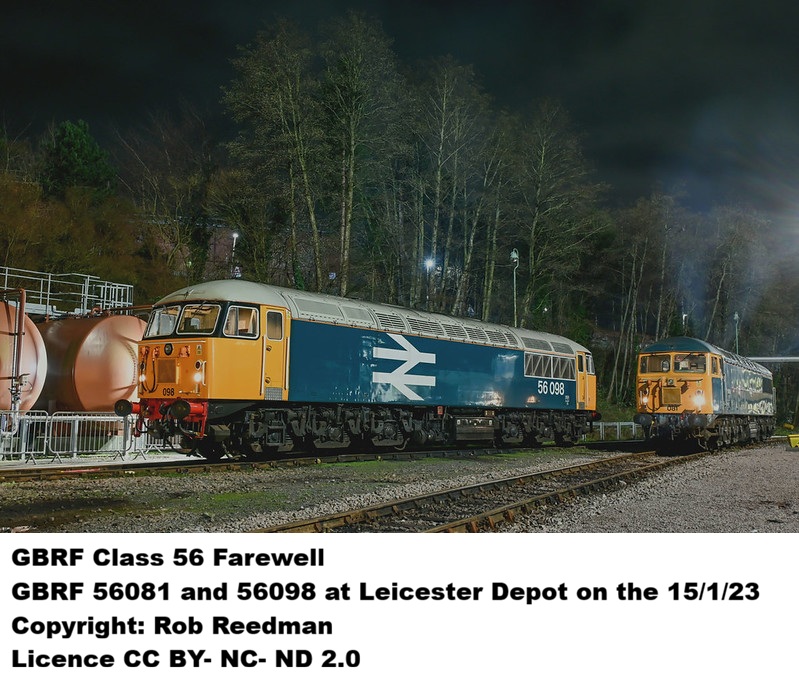

An example of Diesel Class 56

SPECIFICATIONS

POWER TYPE	Diesel Electric
BUILDER	Electroputere, Romania / BREL - Crewe or Doncaster
WHEEL ARRANGEMENT	Co-Co
WHEELBASE	47ft 10in
DIMENSIONS	H-12ft 9.25in/ L-63ft 6in/ W-9ft 2in
WEIGHT	128 ton
WHEEL DIAMETER	45in
ENGINE	Ruston Paxman 16RK3CT
TRAIN BRAKES	Air
BRAKE FORCE	60 tonnes
FUEL CAPACITY	1150 gals
POWER OUTPUT	3250 hp
TRACTIVE EFFORT	61800 lb
MAX SPEED	80mph
TRAIN HEATING SUPPLY	None
BUILT / WITHDRAWN	1976-84/1991-2022
No. BUILT	135

RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

LOCOMOTIVES IN CLASS

REGION
OR CLASS REGION
No. 1948 No. 1957 No. TOPS No. RENUMBER STATUS LOCO FACTS

56 56001 Scrapped 56001

56 56002 Scrapped 56002

56 56003 56312 Converted 56003 - 56312

56 56004 Scrapped 56004

56 56005 Scrapped 56005

56 56006 Preservation 56006

56 56007 Converted 56007

56 56008 Scrapped 56008

56 56009 Converted 56009

56 56010 Scrapped 56010

56 56011 Scrapped 56011

56 56012 Scrapped 56012

56 56013 Scrapped 56013

56 56014 Scrapped 56014

56 56015 Scrapped 56015

56 56016 Scrapped 56016

56 56017 Scrapped 56017

56 56018 Converted 56018

56 56019 Scrapped 56019

56 56020 Scrapped 56020

56 56021 Scrapped 56021

56 56022 Scrapped 56022

56 56023 Scrapped 56023

56 56024 Scrapped 56024

56 56025 Scrapped 56025

56 56026 Scrapped 56026

56 56027 Scrapped 56027

56 56028 Scrapped 56028

56 56029 Scrapped 56029

56 56030 Scrapped 56030

56 56031 Converted 56031

56 56032 Converted 56032

56 56033 Scrapped 56033

56 56034 Scrapped 56034

56 56035 Scrapped 56035

56 56036 Scrapped 56036

56 56037 Converted 56037

56 56038 Converted 56038

56 56039 Scrapped 56039

56 56040 Scrapped 56040

56 56041 Scrapped 56041

56 56042 Scrapped 56042

56 56043 Scrapped 56043

56 56044 Scrapped 56044

56 56045 56301 Commercial 56045 - 56301

56 56046 Scrapped 56046

56 56047 Scrapped 56047

56 56048 Scrapped 56048

56 56049 Commercial 56049

56 56050 Scrapped 56050

56 56051 Commercial 56051

56 56052 Scrapped 56052

56 56053 Scrapped 56053

56 56054 Scrapped 56054

56 56055 Scrapped 56055

56 56056 Scrapped 56056

56 56057 56311 Converted 56057 - 56311

56 56058 Scrapped 56058

56 56059 Scrapped 56059

56 56060 Converted 56060

56 56061 Scrapped 56061

56 56062 Scrapped 56062

56 56063 Scrapped 56063

56 56064 Scrapped 56064

56 56065 Converted 56065

56 56066 Scrapped 56066

56 56067 Scrapped 56067

56 56068 Scrapped 56068

56 56069 Converted 56069

56 56070 Scrapped 56070

56 56071 Scrapped 56071

56 56072 Scrapped 56072

56 56073 Scrapped 56073

56 56074 Scrapped 56074

56 56075 Scrapped 56075

56 56076 Scrapped 56076

56 56077 Converted 56077

56 56078 Commercial 56078

56 56079 Scrapped 56079

56 56080 Scrapped 56080

56 56081 Commercial 56081

56 56082 Scrapped 56082

56 56083 Scrapped 56083

56 56084 Scrapped 56084

56 56085 Scrapped 56085

56 56086 Scrapped 56086

56 56087 Commercial 56087

56 56088 Scrapped 56088

56 56089 Scrapped 56089

56 56090 Commercial 56090

56 56091 Commercial 56091

56 56092 Scrapped 56092

56 56093 Scrapped 56093

56 56094 Commercial 56094

56 56095 Scrapped 56095

56 56096 Commercial 56096

56 56097 Converted 56097

56 56098 Commercial 56098

56 56099 Scrapped 56099

56 56100 Scrapped 56100

56 56101 Exported 56101

56 56102 Scrapped 56102

56 56103 Commercial 56103

56 56104 Converted 56104

56 56105 Commercial 56105

56 56106 Scrapped 56106

56 56107 Scrapped 56107

56 56108 Scrapped 56108

56 56109 Scrapped 56109

56 56110 Scrapped 56110

56 56111 Scrapped 56111

56 56112 Scrapped 56112

56 56113 Commercial 56113

56 56114 Scrapped 56114

56 56115 Exported 56115

56 56116 Scrapped 56116

56 56117 Exported 56117

56 56118 Scrapped 56118

56 56119 Scrapped 56119

56 56120 Scrapped 56120

56 56121 Scrapped 56121

56 56122 Scrapped 56122

56 56123 Scrapped 56123

56 56124 56302 Commercial 56124 - 56302

56 56125 56303 Commercial 56125 - 56303

56 56126 Scrapped 56126

56 56127 Scrapped 56127

56 56128 Converted 56128

56 56129 Scrapped 56129

56 56130 Scrapped 56130

56 56131 Scrapped 56131

56 56132 Scrapped 56132

56 56133 Scrapped 56133

56 56134 Scrapped 56134

56 56135 Scrapped 56135
