SPECIFICATIONS
| POWER TYPE | Diesel Electric |
| BUILDER | British Railways, Derby |
| WHEEL ARRANGEMENT | 1Co-Co1 |
| WHEELBASE | 59ft 8in |
| DIMENSIONS | H-12ft 10.5in/ L-67ft 11in/ W-8ft 10.75in |
| WEIGHT | 138 ton |
| WHEEL DIAMETER | 45in |
| ENGINE | Sulzer 12LDA28-A |
| TRAIN BRAKES | Vacuum |
| BRAKE FORCE | 63 tonnes |
| FUEL CAPACITY | 840gals |
| POWER OUTPUT | 2300hp |
| TRACTIVE EFFORT | 70000/55000lb |
| MAX SPEED | 90mph |
| BUILT / WITHDRAWN | 1959-60/1976-80 | No. BUILT | 10 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|

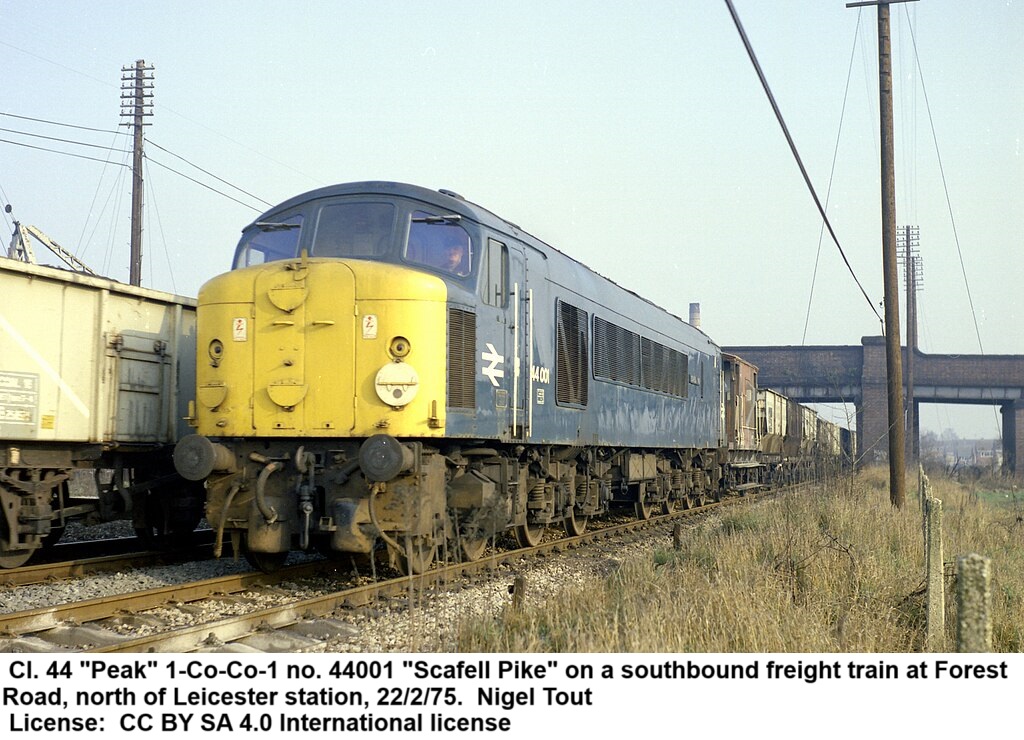

| 44 | D1 | 44001 | Scrapped | D1 - 44001 | |||
| 44 | D2 | 44002 | Scrapped | D2 - 44002 | |||
| 44 | D3 | 44003 | Scrapped | D3 - 44003 | |||
| 44 | D4 | 44004 | Preservation | D4 - 44004 | |||
| 44 | D5 | 44005 | Scrapped | D5 - 44005 | |||
| 44 | D6 | 44006 | Scrapped | D6 - 44006 | |||
| 44 | D7 | 44007 | Scrapped | D7 - 44007 | |||
| 44 | D8 | 44008 | Preservation | D8 - 44008 | |||
| 44 | D9 | 44009 | Scrapped | D9 - 44009 | |||
| 44 | D10 | 44010 | Scrapped | D10 - 44010 |
