SPECIFICATIONS
| POWER TYPE | Diesel Hydraulic |
| BUILDER | North British Locomotive Co., Glasgow |
| WHEEL ARRANGEMENT | A1A-A1A |
| WHEELBASE | 50ft |
| DIMENSIONS | H-12ft 10in/ L-65ft/ W-8ft 8in |
| WEIGHT | 118 ton |
| WHEEL DIAMETER | 3ft 7in |
| ENGINE | 2 x NBL L12V 18/21A |
| TRAIN BRAKES | Vacuum |
| BRAKE FORCE | 88 tonnes |
| FUEL CAPACITY | 800 gals |
| POWER OUTPUT | 2000 hp |
| TRACTIVE EFFORT | 50000lb |
| MAX SPEED | 90mph |
| BUILT / WITHDRAWN | 1958-59/1967 | No. BUILT | 5 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|

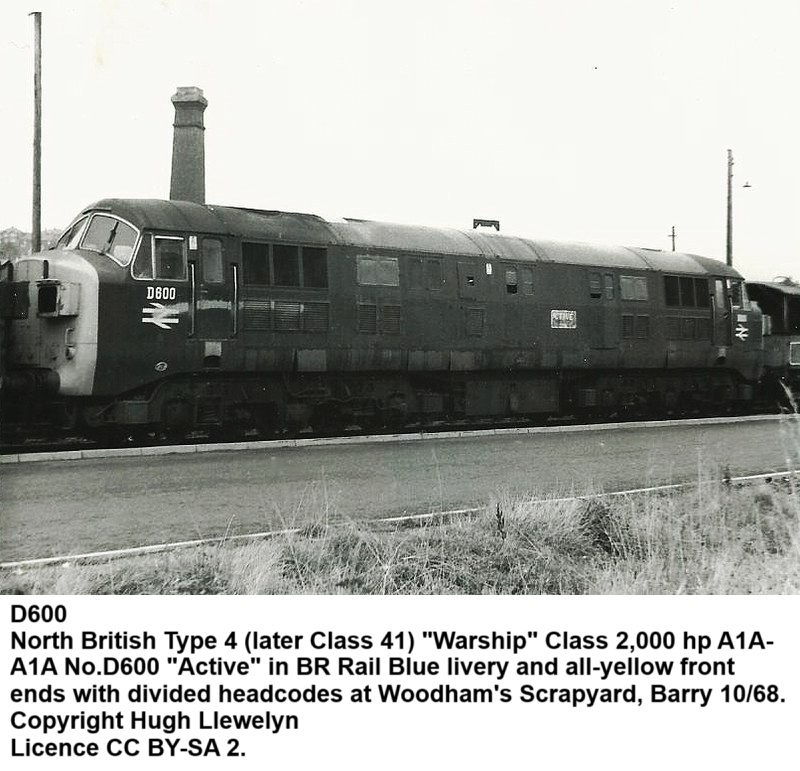

| 41 | D600 | Scrapped | D600 | ||||
| 41 | D601 | Scrapped | D601 | ||||
| 41 | D602 | Scrapped | D602 | ||||
| 41 | D603 | Scrapped | D603 | ||||
| 41 | D604 | Scrapped | D604 |
