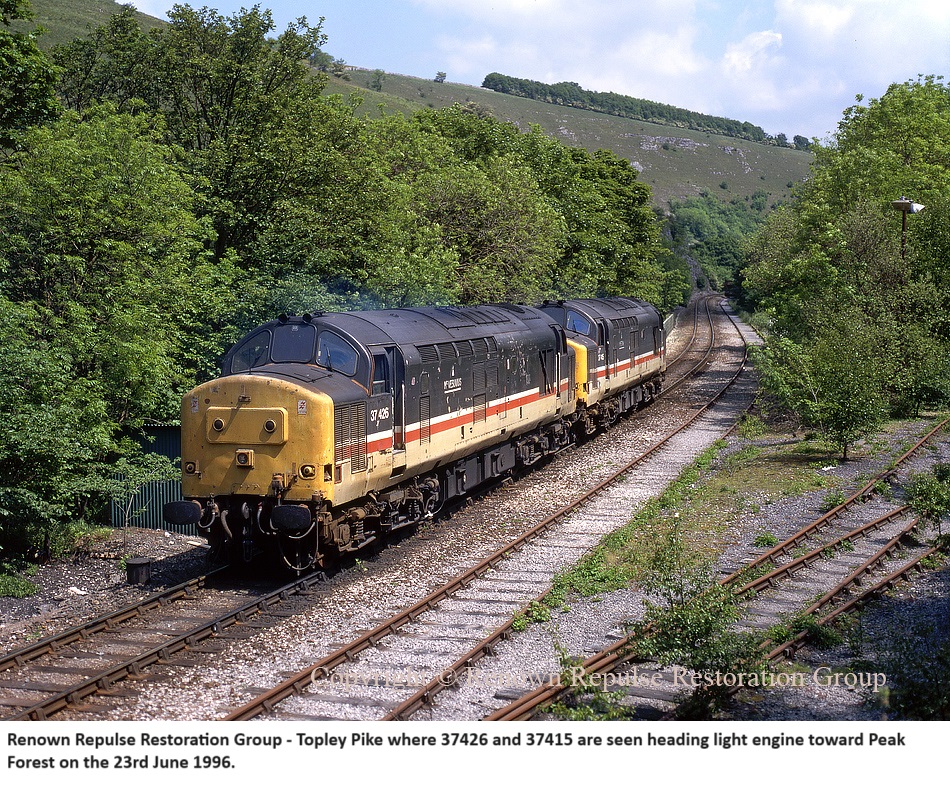

An example of Diesel Class 37



SPECIFICATIONS

POWER TYPE Diesel Electric
BUILDER English Electric/R Stephenson/Hawthorns
UIC WHEEL ARRANGEMENT Co-Co
WHEELBASE 50ft 8in ft
DIMENSIONS L.61ft 6in - W.8ft 10.5in - H.12ft 9in
WEIGHT 100 ton
WHEEL DIAMETER 3ft 9in
ENGINE English Electric 12CSVT
TRAIN BRAKES Vacuum/Dual or Air
BRAKE FORCE 50 ton
FUEL CAPACITY 890 Gals
POWER OUTPUT 1750hp
MAX SPEED 90mph
BUILT / WITHDRAWN 1960-65 / 1967-present
No. BUILT 309

SUB CLASSES

37/0 No Modifications
37/3 Overhaul and fitted with CP7 Bogies
37/4 Refurbished,EE Generator replaced with Alternator,Electric Train Supply (ETS) Fitted
37/5 Generator replaced by Alternator, But No ETS
37/6 Class 37/5 fitted with wiring for ETS (Electric Train Supply)
37/7 Ballast Weights added,generator replaced by Alternator, regeared
37/9 New Engine,generator replaced by alternator,ballast weights
97/3 Cambrian Line ERTMS signalling added (European Rail Traffic Management System)

STATUS

(Commercial Use includes use by British Rail and other Railway Organisations)

Sortable-Click on the Column Headings

REGION
or CLASS
REGION No 1948 No 1957 No 1st TOPS 2nd/3rd TOPS STATUS LOCO FACTS
37/4 D6600 37300 37429 Scrapped D6600-37300-37429
37/4 D6601 37301 37412 Scrapped D6601-37301-37412
37/4 D6602 37302 37416 Scrapped D6602-37302-37416
37/3 D6603 37303 37271-37333 Scrapped D6603-37271-37303-37333
37/3 D6604 37304 37272-37334 Scrapped D6604-37272-37304-37334
37/4 D6605 37305 37407 Commercial Use D6605-37305-37407
37/0 D6606 37306 37273 Scrapped D6606-37273-37306
37/4 D6607 37307 37403 Preservation D6607-37307-37403
37/0 D6608 37308 37274-37308 Preservation D6608-37274-37308
37/3 D6700 37119 37350 Preservation D6700-37119-37350
37/7 D6701 37001 37707 Scrapped D6701-37001-37707
37/3 D6702 37002 37351 Scrapped D6702-37002-37351
37/0 D6703 37003 Preservation D6703-37003
37/0 D6704 37004 Scrapped D6704-37004
37/6 D6705 37005 37501-37601 Commercial Use D6705-37005-37501-37601
37/7 D6706 37006 37798 Scrapped D6706-37006-37798
37/6 D6707 37007 37506-37604 Commercial Use D6707-37007-37506-37604
37/0 D6708 37008 37352 Scrapped D6708-37008-37352
37/3 D6709 37009 37340 Preservation D6709-37009-37340
37/0 D6710 37010 Scrapped D6710-37010
37/0 D6711 37011 Scrapped D6711-37011
37/0 D6712 37012 Scrapped D6712-37012
37/0 D6713 37013 Scrapped D6713-37013
37/7 D6714 37014 37709 Scrapped D6714-37014-37709
37/3 D6715 37015 37341 Scrapped D6715-37015-37341
37/7 D6716 37016 37706 Commercial Use D6716-37016-37706
37/5 D6717 37017 37503 Preservation D6717-37017-37503
37/5 D6718 37018 37517 Commercial Use D6718-37018-37517
37/0 D6719 37019 37342 Scrapped D6719-37019-37342
37/7 D6720 37020 37702 Exported D6720-37020-37702
37/7 D6721 37021 37715 Scrapped D6721-37021-37715
37/6 D6722 37022 37512-37608 Commercial Use D6722-37022-37512-37608
37/0 D6723 37023 Preservation D6723-37023
37/7 D6724 37024 37714 Preservation D6724-37024-37714
37/0 D6725 37025 Preservation D6725-37025
37/0 D6726 37026 37320 Scrapped D6726-37026-37320
37/5 D6727 37027 37519 Scrapped D6727-37027-37519
37/5 D6728 37028 37505 Scrapped D6728-37028-37505
37/0 D6729 37029 Preservation D6729-37029
37/7 D6730 37030 37701 Scrapped D6730-37030-37701
37/0 D6731 37031 Scrapped D6731-37031
37/0 D6732 37032 37353 Preservation D6732-37032-37353
37/7 D6733 37033 37719 Scrapped D6733-37033-37719
37/7 D6734 37034 37704 Scrapped D6734-37034-37704
37/0 D6735 37035 Scrapped D6735-37035
37/6 D6736 37036 37507-37605 Scrapped D6736-37036-37507-37605
37/0 D6737 37037 37321 Preservation D6737-37037-37321
37/0 D6738 37038 Commercial Use D6738-37038
37/6 D6739 37039 37504-37603 Commercial Use D6739-37039-37504-37603
37/0 D6740 37040 Scrapped D6740-37040
37/5 D6741 37041-37520 Scrapped D6741-37041-37520
37/0 D6742 37042 Preservation D6742-37042
37/0 D6743 37043 37354 Scrapped D6743-37043-37354
37/7 D6744 37044 37710 Scrapped D6744-37044-37710
37/3 D6745 37045 37355 Scrapped D6745-37045-37355
37/0 D6746 37046 Scrapped D6746-37046
37/0 D6747 37047 Scrapped D6747-37047
37/0 D6748 37048 Scrapped D6748-37048
37/3 D6749 37049 37322-37343 Scrapped D6749-37049-37322-37343
37/7 D6750 37050 37717 Scrapped D6750-37050-37717
37/0 D6751 37051 Scrapped D6751-37051
37/7 D6752 37052 37713 Scrapped D6752-37052-37713
37/3 D6753 37053 37344 Scrapped D6753-37053-37344
37/0 D6754 37054 Scrapped D6754-37054
37/0 D6755 37055 Scrapped D6755-37055
37/5 D6756 37056 37513 Scrapped D6756-37056-37513
37/0 D6757 37057 Commercial Use D6757-37057
37/0 D6758 37058 Scrapped D6758-37058
37/0 D6759 37059 Commercial Use D6759-37059
37/7 D6760 37060 37705 Scrapped D6760-37060-37705
37/7 D6761 37061 37799 Scrapped D6761-37061-37799
37/0 D6762 37062 Scrapped D6762-37062
37/0 D6763 37063 Scrapped D6763-37063
37/5 D6764 37064 37515 Scrapped D6764-37064-37515
37/0 D6765 37065 Scrapped D6765-37065
37/0 D6766 37066 Scrapped D6766-37066
37/7 D6767 37067 37703 Preservation D6767-37067-37703
37/0 D6768 37068 37356 Scrapped D6768-37068-37356
37/0 D6769 37069 Commercial Use D6769-37069
37/0 D6770 37070 Scrapped D6770-37070
37/0 D6771 37071 Scrapped D6771-37071
37/0 D6772 37072 Scrapped D6772-37072
37/0 D6773 37073 Scrapped D6773-37073
37/0 D6774 37074 Scrapped D6774-37074
37/0 D6775 37075 Preservation D6775-37075
37/5 D6776 37076 37518 Commercial Use D6776-37076-37518
37/0 D6777 37077 Scrapped D6777-37077
37/0 D6778 37078 Scrapped D6778-37078
37/0 D6779 37079 37357 Scrapped D6779-37079-37357
37/0 D6780 37080 Scrapped D6780-37080
37/7 D6781 37081 37797 Scrapped D6781-37081-37797
37/6 D6782 37082 37502-37602 Commercial Use D6782-37082-37502-37602
37/0 D6783 37083 Scrapped D6783-37083
37/7 D6784 37084 37718 Scrapped D6784-37084-37718
37/7 D6785 37085 37711 Scrapped D6785-37085-37711
37/5 D6786 37086 37516 Commercial Use D6786-37086-37516
37/0 D6787 37087 Scrapped D6787-37087
37/0 D6788 37088 37323 Scrapped D6788-37088-37323
37/7 D6789 37089 37708 Scrapped D6789-37089-37708
37/5 D6790 37090 37508-37606 Preservation D6790-37090-37508-37606
37/3 D6791 37091 37358 Scrapped D6791-37091-37358
37/0 D6792 37092 Scrapped D6792-37092
37/5 D6793 37093 37509 Scrapped D6793-37093-37509
37/7 D6794 37094 37716 Commercial Use D6794-37094-37716
37/0 D6795 37095 Scrapped D6795-37095
37/0 D6796 37096 Scrapped D6796-37096
37/0 D6797 37097 Preservation D6797-37097
37/0 D6798 37098 Scrapped D6798-37098
37/0 D6799 37099 37324 Commercial Use D6799-37099-37324
97/3 D6800 37100 97301 Commercial Use D6800-37100-97301
37/3 D6801 37101 37345 Scrapped D6801-37101-37345
37/7 D6802 37102 37712 Scrapped D6802-37102-37712
37/6 D6803 37103 37511-37607 Commercial Use D6803-37103-37511-37607
37/0 D6804 37104 Scrapped D6804-37104
37/7 D6805 37105 37796 Scrapped D6805-37105-37796
37/0 D6806 37106 Scrapped D6806-37106
37/0 D6807 37107 Scrapped D6807-37107
37/0 D6808 37108 37325 Preservation D6808-37108-37325
37/0 D6809 37109 Preservation D6809-37109
37/0 D6810 37110 Scrapped D6810-37110
37/0 D6811 37111 37326 Scrapped D6811-37111-37326
37/5 D6812 37112 37510 Commercial Use D6812-37112-37510
37/0 D6813 37113 Scrapped D6813-37113
37/0 D6814 37114 Scrapped D6814-37114
37/6 D6815 37115 37514-37609 Commercial Use D6815-37115-37514-37609
37/0 D6816 37116 Commercial Use D6816-37116
37/5 D6817 37117 37521 Commercial Use D6817-37117-37521
37/3 D6818 37118 37359 Scrapped D6818-37118-37359
37/7 D6819 37283 37895 Scrapped D6819-37283-37895
37/7 D6820 37120 37887 Scrapped D6820-37120-37887
37/5 D6821 37121 37677 Scrapped D6821-37121-37677
37/5 D6822 37122 37692 Scrapped D6822-37122-37692
37/5 D6823 37123 37679 Preservation D6823-37123-37679
37/7 D6824 37124 37894 Scrapped D6824-37124-37894
37/9 D6825 37125 37904 Scrapped D6825-37125-37904
37/5 D6826 37126 37676 Commercial Use D6826-37126-37676
37/3 D6827 37127 37370 Scrapped D6827-37127-37370
37/3 D6828 37128 37330 Scrapped D6828-37128-37330
37/5 D6829 37129 37669 Commercial Use D6829-37129-37669
37/5 D6830 37130 37681 Scrapped D6830-37130-37681
37/0 D6831 37131 Scrapped D6831-37131
37/5 D6832 37132 37673 Scrapped D6832-37132-37673
37/0 D6833 37133 Scrapped D6833-37133
37/5 D6834 37134 37684 Scrapped D6834-37134-37684
37/7 D6835 37135 37888 Scrapped D6835-37135-37888
37/9 D6836 37136 37905 Commercial Use D6836-37136-37905
37/0 D6837 37137 37312 Scrapped D6837-37137-37312
37/0 D6838 37138 Scrapped D6838-37138
37/0 D6839 37139 Scrapped D6839-37139
37/0 D6840 37140 Scrapped D6840-37140
37/0 D6841 37141 Scrapped D6841-37141
37/0 D6842 37142 Preservation D6842-37142
37/7 D6843 37143 37800 Commercial Use D6843-37143-37800
37/0 D6844 37144 Scrapped D6844-37144
37/3 D6845 37145 37313-37382 Scrapped D6845-37145-37313-37382
37/0 D6846 37146 Scrapped D6846-37146
37/3 D6847 37147 37371 Scrapped D6847-37147-37371
37/9 D6848 37148 37902 Scrapped D6848-37148-37902
37/7 D6849 37149 37892 Scrapped D6849-37149-37892
37/9 D6850 37150 37901 Commercial Use D6850-37150-37901
37/5 D6851 37151 37667 Commercial Use D6851-37151-37667
37/0 D6852 37152 37310 Preservation D6852-37152-37310
37/0 D6853 37153 Scrapped D6853-37153
37/0 D6854 37154 Scrapped D6854-37154
37/7 D6855 37155 37897 Scrapped D6855-37155-37897
37/0 D6856 37156 37311 Scrapped D6856-37156-37311
37/5 D6857 37157 37695 Scrapped D6857-37157-37695
37/0 D6858 37158 Scrapped D6858-37158
37/3 D6859 37159 37372 See D5910 D6859-37159-37372
37/3 D6860 37160 37373 Scrapped D6850-37160-37373
37/7 D6861 37161 37899 Scrapped D6861-37161-37899
37/0 D6862 37162 Scrapped D6862-37162
37/7 D6863 37163 37802 Scrapped D6863-37163-37802
37/5 D6864 37164 37675 Scrapped D6864-37164-37675
37/0 D6865 37165 37374 Scrapped D6865-37165-37374
37/7 D6866 37166 37891 Scrapped D6866-37166-37891
37/3 D6867 37167 37383 Scrapped D6867-37167-37383
37/7 D6868 37168 37890 Scrapped D6868-37168-37890
37/5 D6869 37169 37674 Preservation D6869-37169-37674
97/3 D6870 37170 97302 Commercial Use D6870-37170-97302
37/6 D6871 37171 37690-37611 Commercial Use D6871-37171-37611-37690
37/5 D6872 37172 37686 Scrapped D6872-37172-37686
37/7 D6873 37173 37801 Scrapped D6873-37173-37801
37/0 D6874 37174 Scrapped D6874-37174
37/0 D6875 37175 Commercial Use D6875-37175
37/7 D6876 37176 37883 Scrapped D6876-37176-37883
37/7 D6877 37177 37885 Scrapped D6877-37177-37885
97/3 D6878 37178 97303 Commercial Use D6878-37178-97303
37/6 D6879 37179 37691-37612 Commercial Use D6879-37179-37612-37691
37/7 D6880 37180 37886 Scrapped D6880-37180-37886
37/6 D6881 37181 37687-37610 Commercial Use D6881-37181-37610-37687
37/5 D6882 37182 37670 Scrapped D6882-37182-37670
37/7 D6883 37183 37884 Commercial Use D6883-37183-37884
37/0 D6884 37184 Scrapped D6884-37184
37/0 D6885 37185 Scrapped D6885-37185
37/7 D6886 37186 37898 Scrapped D6886-37186-37898
37/5 D6887 37187 37683 Scrapped D6887-37187-37683
37/0 D6888 37188 Scrapped D6888-37188
37/5 D6889 37189 37672 Scrapped D6889-37189-37672
37/0 D6890 37190 37314 Commercial Use D6890-37190-37314
37/0 D6891 37191 Scrapped D6891-37191
37/5 D6892 37192 37694 Scrapped D6892-37192-37694
37/3 D6893 37193 37375 Scrapped D6893-37193-37375
37/0 D6894 37194 Scrapped D6894-37194
37/5 D6895 37195 37689 Scrapped D6895-37195-37689
37/0 D6896 37196 Scrapped D6896-37196
37/0 D6897 37197 Scrapped D6897-37197
37/0 D6898 37198 Preservation D6898-37198
37/3 D6899 37199 37376 Scrapped D6899-37199-37376
37/3 D6900 37200 37377 Scrapped D6900-37200-37377
37/0 D6901 37201 Scrapped D6901-37201
37/3 D6902 37202 37331 Scrapped D6902-37202-37331
37/0 D6903 37203 Scrapped D6903-37203
37/3 D6904 37204 37378 Scrapped D6904-37204-37378
37/5 D6905 37205 37688 Commercial Use D6905-37205-37688
37/9 D6906 37206 37906 Commercial Use D6906-37206-37906
37/0 D6907 37207 Commercial Use D6907-37207
37/7 D6908 37208 37803 Scrapped D6908-37208-37803
37/0 D6909 37209 Scrapped D6909-37209
37/5 D6910 37210 37693 Scrapped D6910-37210-37693
37/0 D6911 37211 Scrapped D6911-37211
37/0 D6912 37212 Scrapped D6912-37212
37/0 D6913 37213 Scrapped D6913-37213
37/0 D6914 37214 Preservation D6914-37214
37/0 D6915 37215 Preservation D6915-37215
37/0 D6916 37216 Preservation D6916-37216
97/3 D6917 37217 97304 Commercial Use D6917-37217-97304
37/0 D6918 37218 Commercial Use D6918-37218
37/0 D6919 37219 Commercial Use D6919-37219
37/0 D6920 37220 Scrapped D6920-37220
37/0 D6921 37221 Scrapped D6921-37221
37/0 D6922 37222 Scrapped D6922-37222
37/0 D6923 37223 Scrapped D6923-37223
37/5 D6924 37224 37680 Scrapped D6924-37224-37680
37/0 D6925 37225 Scrapped D6925-37225
37/3 D6926 37226 37379 Scrapped D6926-37226-37379
37/0 D6927 37227 Preservation D6927-37227
37/5 D6928 37228 37696 Scrapped D6928-37228-37696
37/0 D6929 37229 Scrapped D6929-37229
37/0 D6930 37230 Scrapped D6930-37230
37/7 D6931 37231 37896 Scrapped D6931-37231-37896
37/0 D6932 37232 Scrapped D6932-37232
37/7 D6933 37233 37889 Scrapped D6933-37233-37889
37/5 D6934 37234 37685 Commercial Use D6934-37234-37685
37/0 D6935 37235 Scrapped D6935-37235
37/5 D6936 37236 37682 Scrapped D6936-37236-37682
37/7 D6937 37237 37893 Scrapped D6937-37237-37893
37/0 D6938 37238 Scrapped D6938-37238
37/3 D6939 37239 37332 Scrapped D6939-37239-37332
37/0 D6940 37240 Commercial Use D6940-37240
37/0 D6941 37241 Scrapped D6941-37241
37/0 D6942 37242 Scrapped D6942-37242
37/5 D6943 37243 37697 Scrapped D6943-37243-37697
37/0 D6944 37244 Scrapped D6944-37244
37/0 D6945 37245 Scrapped D6945-37245
37/5 D6946 37246 37698 Scrapped D6946-37246-37698
37/5 D6947 37247 37671 Scrapped D6947-37247-37671
37/0 D6948 37248 Preservation D6948-37248
37/9 D6949 37249 37903 Scrapped D6949-37249-37903
37/0 D6950 37250 Preservation D6950-37250
37/0 D6951 37251 Scrapped D6951-37251
37/0 D6952 37252 Scrapped D6952-37252
37/5 D6953 37253 37699 Scrapped D6953-37253-37699
37/0 D6954 37254 Commercial Use D6954-37254
37/0 D6955 37255 Commercial Use D6955-37255
37/5 D6956 37256 37678 Scrapped D6956-37256-37678
37/5 D6957 37257 37668 Commercial Use D6957-37257-37668
37/3 D6958 37258 37384 Scrapped D6958-37258-37384
37/0 D6959 37259 37380 Commercial Use D6959-37259-37380
37/0 D6960 37260 Scrapped D6960-37260
37/0 D6961 37261 Preservation D6961-37261
37/0 D6962 37262 Scrapped D6962-37262
37/0 D6963 37263 Preservation D6963-37263
37/0 D6964 37264 Preservation D6964-37264
37/4 D6965 37265 37430 Scrapped D6965-37265-37430
37/4 D6966 37266 37422 Commercial Use D6966-37266-37422
37/4 D6967 37267 37421 Commercial Use D6967-37267-37421
37/4 D6968 37268 37401 Commercial Use D6968-37268-37401
37/4 D6969 37269 37417 Scrapped D6969-37269-37417
37/4 D6970 37270 37409 Commercial Use D6970-37270-37409
37/4 D6971 37271 37418 Commercial Use D6971-37271-37418
37/4 D6972 37272 37431 Scrapped D6972-37272-37431
37/4 D6973 37273 37410 Scrapped D6973-37273-37410
37/4 D6974 37274 37402 Preservation D6974-37274-37402
37/0 D6975 37275 Preservation D6975-37275
37/4 D6976 37276 37413 Scrapped D6976-37276-37413
37/4 D6977 37277 37415 Scrapped D6977-37277-37415
37/0 D6978 37278 Scrapped D6978-37278
37/4 D6979 37279 37424 Commercial Use D6979-37279-37424
37/0 D6980 37280 Scrapped D6980-37280
37/4 D6981 37281 37428 Scrapped D6981-37281-37428
37/4 D6982 37282 37405 Commercial Use D6982-37282-37405
37/0 D6983 Scrapped D6983
37/3 D6984 37284 37381 Scrapped D6984-37284-37381
37/3 D6985 37285 37335 Scrapped D6985-37285-37335
37/4 D6986 37286 37404 Scrapped D6986-37286-37404
37/4 D6987 37287 37414 Scrapped D6987-37287-37414
37/4 D6988 37288 37427 Scrapped D6988-37288-37427
37/4 D6989 37289 37408 Scrapped D6989-37289-37408
37/4 D6990 37290 37411 Scrapped D6990-37290-37411
37/4 D6991 37291 37419 Commercial Use D6991-37291-37419
37/4 D6992 37292 37425 Commercial Use D6992-37292-37425
37/0 D6993 37293 Scrapped D6993-37293
37/0 D6994 37294 Preservation D6994-37294
37/4 D6995 37295 37406 Scrapped D6995-37295-37406
37/4 D6996 37296 37423 Commercial Use D6996-37296-37423
37/4 D6997 37297 37420 Scrapped D6997-37297-37420
37/0 D6998 37298 Scrapped D6998-37298
37/4 D6999 37299 37426 Scrapped D6999-37299-37426


THIS PAGE WAS LAST UPDATED MARCH 2024

© 2024- to dieselalmanac.uk. dieselalmanac.uk
