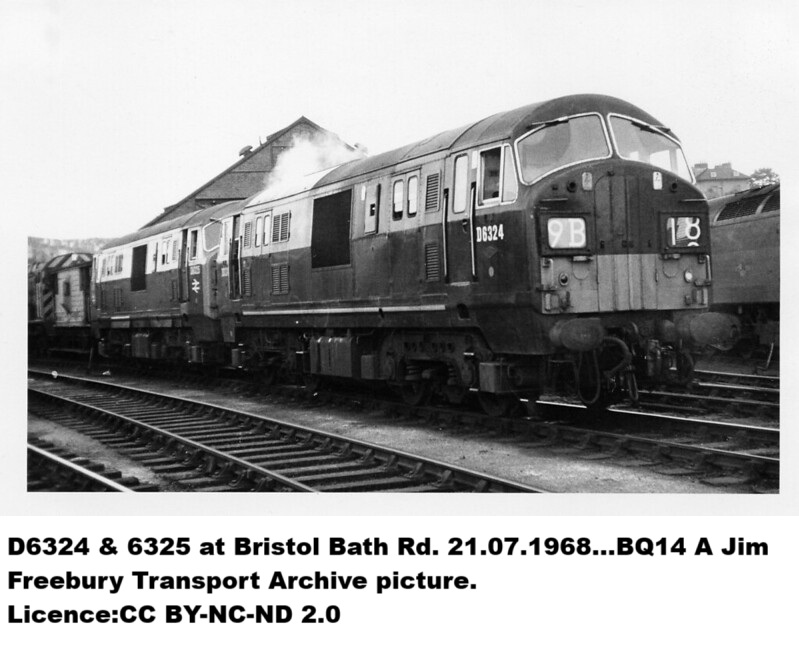

An example of Diesel Class 22



SPECIFICATIONS

POWER TYPE Diesel Hydraulic
BUILDER North British Locomotive Co. Glasgow
WHEEL ARRANGEMENT B-B
WHEELBASE -34ft 6in
DIMENSIONS L. -46ft 8.5in W. - 8ft 8in H.12ft 10in
WEIGHT 65-68 tonnes
WHEEL DIAMETER 3ft 7in
ENGINE NBL/MAN L12V18/21
TRACTIVE EFFORT 38-40,000lb
TRAIN BRAKES Vacuum
BRAKE FORCE 29 tonnes
FUEL CAPACITY 450 gals
POWER OUTPUT 1100hp
MAX SPEED 75mph
BUILT/ WITHDRAWN 1959-62 / 1967-72
No. BUILT 58


RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

LOCOMOTIVES IN CLASS

REGION
OR CLASS
REGION
No.
1948 No. 1957 No. TOPS No. RENUMBER STATUS LOCO FACTS
22 D6300 Scrapped D6300
22 D6301 Scrapped D6301
22 D6302 Scrapped D6302
22 D6303 Scrapped D6303
22 D6304 Scrapped D6304
22 D6305 Scrapped D6305
22 D6306 Scrapped D6306
22 D6307 Scrapped D6307
22 D6308 Scrapped D6308
22 D6309 Scrapped D6309
22 D6310 Scrapped D6310
22 D6311 Scrapped D6311
22 D6312 Scrapped D6312
22 D6313 Scrapped D6313
22 D6314 Scrapped D6314
22 D6315 Scrapped D6315
22 D6316 Scrapped D6316
22 D6317 Scrapped D6317
22 D6318 Scrapped D6318
22 D6319 Scrapped D6319
22 D6320 Scrapped D6320
22 D6321 Scrapped D6321
22 D6322 Scrapped D6322
22 D6323 Scrapped D6323
22 D6324 Scrapped D6324
22 D6325 Scrapped D6325
22 D6326 Scrapped D6326
22 D6327 Scrapped D6327
22 D6328 Scrapped D6328
22 D6329 Scrapped D6329
22 D6330 Scrapped D6330
22 D6331 Scrapped D6331
22 D6332 Scrapped D6332
22 D6333 Scrapped D6333
22 D6334 Scrapped D6334
22 D6335 Scrapped D6335
22 D6336 Scrapped D6336
22 D6337 Scrapped D6337
22 D6338 Scrapped D6338
22 D6339 Scrapped D6339
22 D6340 Scrapped D6340
22 D6341 Scrapped D6341
22 D6342 Scrapped D6342
22 D6343 Scrapped D6343
22 D6344 Scrapped D6344
22 D6345 Scrapped D6345
22 D6346 Scrapped D6346
22 D6347 Scrapped D6347
22 D6348 Scrapped D6348
22 D6349 Scrapped D6349
22 D6350 Scrapped D6350
22 D6351 Scrapped D6351
22 D6352 Scrapped D6352
22 D6353 Scrapped D6353
22 D6354 Scrapped D6354
22 D6355 Scrapped D6355
22 D6356 Scrapped D6356
22 D6357 Scrapped D6357
