CLASS TYPE 15

RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

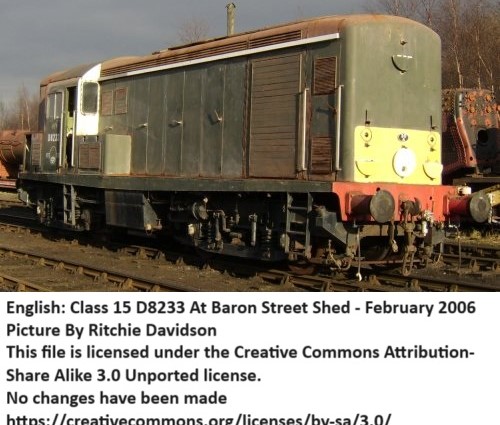

An example of the design of Diesel Shunter Class 15



SPECIFICATIONS

POWER TYPE Diesel Electric
BUILDER Thomson-Houston
UIC WHEEL ARRANGEMENT Bo-Bo
WHEELBASE 31 ft
DIMENSIONS L.42ft - W.9ft 2in - H.12ft 6in
WEIGHT 69 tons
WHEEL DIAMETER 3ft 3.5in
ENGINE Paxman 16YHXL
MAX TRACTIVE EFFORT 37500lbf
TRAIN BRAKES Vacuum
BRAKE FORCE 31 ton
FUEL CAPACITY 400 Gals
POWER OUTPUT 800hp
MAX SPEED 60 mph
BUILT / WITHDRAWN 1957-61 / 1968-71
No. BUILT 44


RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

LOCOMOTIVES IN CLASS

Of the 44 produced- numbered D8200 to D8243, only one survives No. D8233

REGION
OR CLASS
REGION
No.
1948 No. 1957 No. TOPS No. RENUMBER STATUS LOCO FACTS
15 D8200 Scrapped D8200
15 D8201 Scrapped D8201
15 D8202 Scrapped D8202
15 D8203 Scrapped D8203
15 D8204 Scrapped D8204
15 D8205 Scrapped D8205
15 D8206 Scrapped D8206
15 D8207 Scrapped D8207
15 D8208 Scrapped D8208
15 D8209 Scrapped D8209
15 D8210 Scrapped D8210
15 D8211 Scrapped D8211
15 D8212 Scrapped D8212
15 D8213 Scrapped D8213
15 D8214 Scrapped D8214
15 D8215 Scrapped D8215
15 D8216 Scrapped D8216
15 D8217 Scrapped D8217
15 D8218 Scrapped D8218
15 D8219 Scrapped D8219
15 D8220 Scrapped D8220
15 D8221 Scrapped D8221
15 D8222 Scrapped D8222
15 D8223 Scrapped D8223
15 D8224 Scrapped D8224
15 D8225 Scrapped D8225
15 D8226 Scrapped D8226
15 D8227 Scrapped D8227
15 D8228 Scrapped D8228
15 D8229 Scrapped D8229
15 D8230 Scrapped D8230
15 D8231 Scrapped D8231
15 D8232 Scrapped D8232
15 D8233 - Preservation D8233
15 D8234 Scrapped D8234
15 D8235 Scrapped D8235
15 D8236 Scrapped D8236
15 D8237 Scrapped D8237
15 D8238 Scrapped D8238
15 D8239 Scrapped D8239
15 D8240 Scrapped D8240
15 D8241 Scrapped D8241
15 D8242 Scrapped D8242
15 D8243 Scrapped D8243


THIS PAGE WAS LAST UPDATED MARCH 2024
