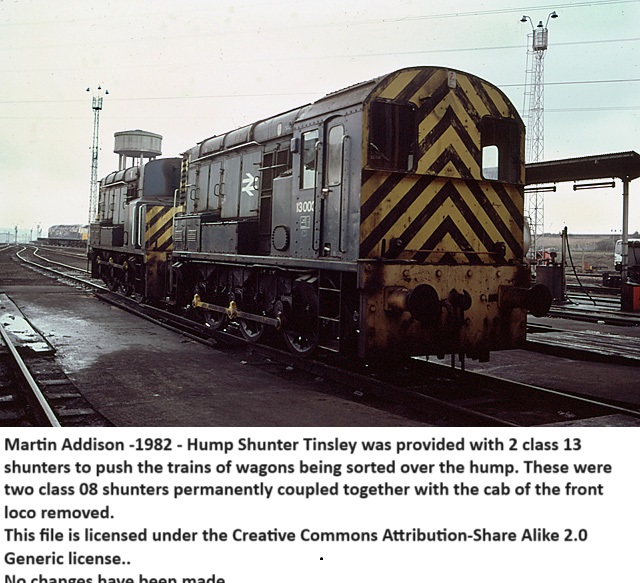

This Diesel Electric Locomotive has a wheelbase of 0-6-0.
They were rebuilt from the Class 8 design for use at Tinsley depot
where they were used in pairs, with the cab removed from the diesel at the front.
SPECIFICATIONS
| POWER TYPE | Diesel Electric |
| BUILDER | British Railways-Darlington |
| WHEELBASE | 0-6-0 - 42ft 1.5in |
| DIMENSIONS | L. 60ft 1in - W.8ft 6in. - H.12ft8.5in |
| WEIGHT | 120 ton |
| WHEEL DIAMETER | 4ft 6in |
| ENGINE | English Electric 6KT (2) |
| MAX TRACTIVE EFFORT | 70,000lbf |
| TRAIN BRAKES | Vacuum |
| BRAKE FORCE | 37 ton |
| FUEL CAPACITY | 1336 Gals |
| POWER OUTPUT | 350hp |
| MAX SPEED | 20mph |
| BUILT / WITHDRAWN | 1965 (rebuilt) / 1981-85 | No. BUILT | 3 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|
| 13 | D4500 | 13003 | Scrapped | 13003 - D4500 - D4188 - D3698 | |||
| 13 | D4501 | 13001 | Scrapped | 13001 - D4501 - D4190 - D4189 | |||
| 13 | D4502 | 13002 | Scrapped | 13002 - D4502 - D4187 - D3697 |
