SPECIFICATIONS
| POWER TYPE | Diesel Electric |
| BUILDER | BR Ashford Works |
| WHEELBASE | 0-6-0 - 11ft 6in |
| DIMENSIONS | L. 29ft 5.5in - W.9ft. - H.12ft 8.5in |
| WEIGHT | 48 ton |
| WHEEL DIAMETER | 4ft 6in |
| ENGINE | English Electric 6KT |
| MAX TRACTIVE EFFORT | Max 24600 lbf |
| TRAIN BRAKES | None (Air from 1970 |
| BRAKE FORCE | |
| FUEL CAPACITY | 660 Gals |
| POWER OUTPUT | 350hp |
| MAX SPEED | 27.5mph |
| BUILT / WITHDRAWN | 1949-52 / 1968-71 | No. BUILT | 26 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
Only one of these locomotives was preseved, the remainder were scrapped
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|
| 12 | 15211 | Scrapped | 15211 | ||||
| 12 | 15212 | Scrapped | 15212 | ||||
| 12 | 15213 | Scrapped | 15213 | ||||
| 12 | 15214 | Scrapped | 15214 | ||||
| 12 | 15215 | Scrapped | 15215 | ||||
| 12 | 15216 | Scrapped | 15216 | ||||
| 12 | 15217 | Scrapped | 15217 | ||||
| 12 | 15218 | Scrapped | 15218 | ||||
| 12 | 15219 | Scrapped | 15219 | ||||
| 12 | 15220 | Scrapped | 15220 | ||||
| 12 | 15221 | Scrapped | 15221 | ||||
| 12 | 15222 | Scrapped | 15222 | ||||
| 12 | 15223 | Scrapped | 15223 | ||||

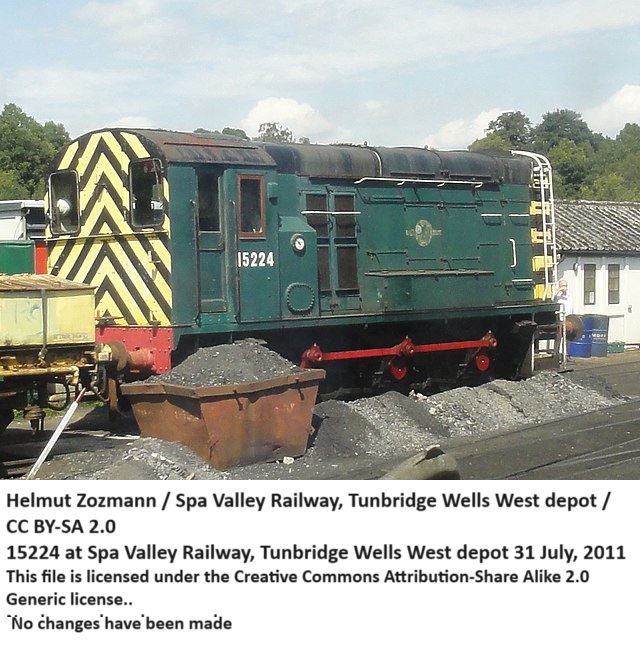

| 12 | 15224 | Preservation | 15224 | ||||
| 12 | 15225 | Scrapped | 15225 | ||||
| 12 | 15226 | Scrapped | 15226 | ||||
| 12 | 15227 | Scrapped | 15227 | ||||
| 12 | 15228 | Scrapped | 15228 | ||||
| 12 | 15229 | Scrapped | 15229 | ||||
| 12 | 15230 | Scrapped | 15230 | ||||
| 12 | 15231 | Scrapped | 15231 | ||||
| 12 | 15232 | Scrapped | 15232 | ||||
| 12 | 15233 | Scrapped | 15233 | ||||
| 12 | 15234 | Scrapped | 15234 | ||||
| 12 | 15235 | Scrapped | 15235 | ||||
| 12 | 15236 | Scrapped | 15236 |
