CLASS TYPE 10

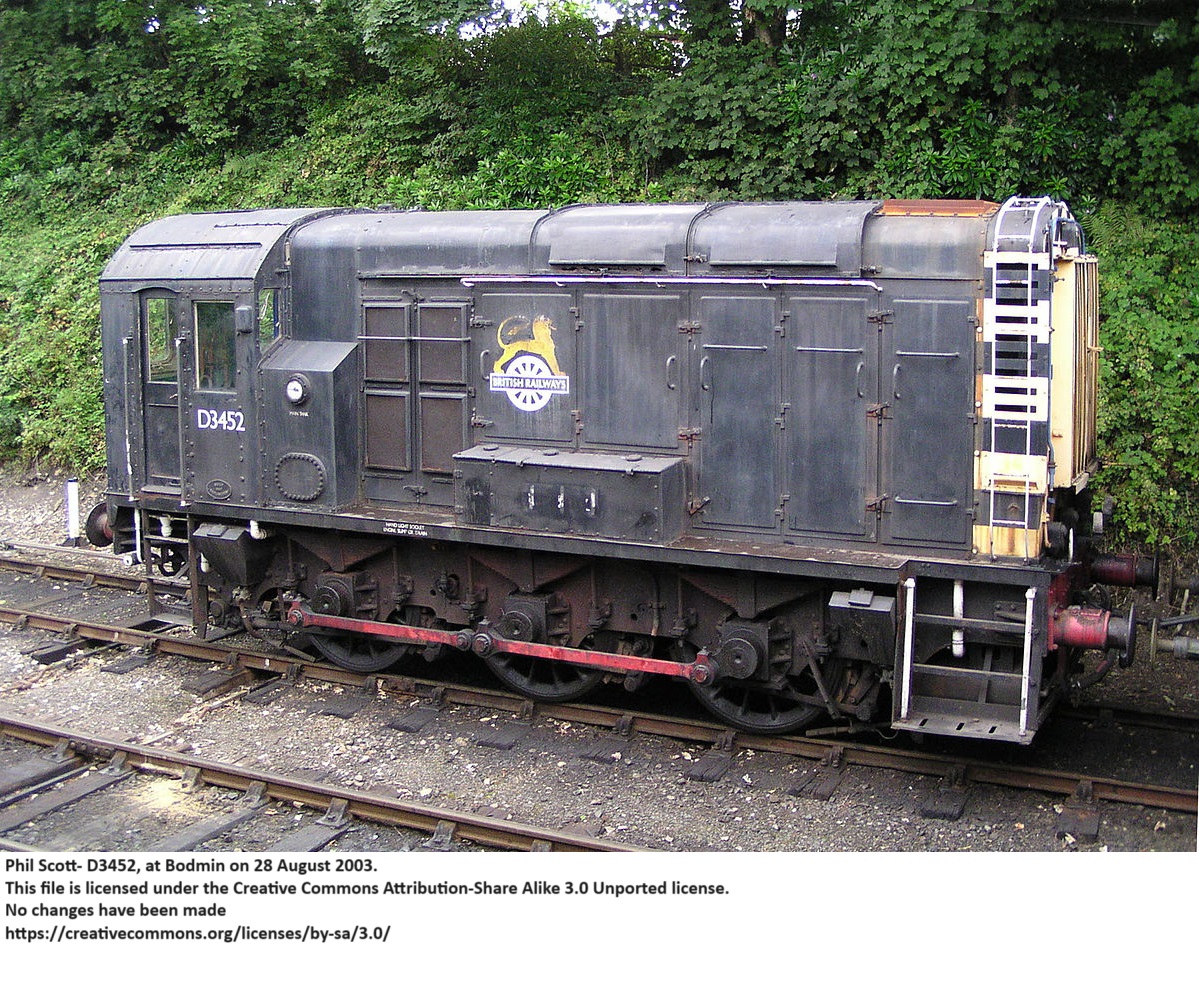

An example of the design of Diesel Shunter Class 10

SPECIFICATIONS

POWER TYPE	Diesel Electric
BUILDER	British Rail,Darlington & Doncaster Works
WHEELBASE	0-6-0 - 11ft 6in
DIMENSIONS	L. 29ft 3in - W.8ft 6in. - H.12ft 8.5 inch
WEIGHT	48.6 ton
WHEEL DIAMETER	4ft 6in
ENGINE	Blackstone ER6T
MAX TRACTIVE EFFORT	155.7KN
TRAIN BRAKES	Vacuum
BRAKE FORCE
FUEL CAPACITY	668 Gals
POWER OUTPUT	350hp
MAX SPEED	20mph
BUILT / WITHDRAWN	1955-62 / 1967-72
No. BUILT	146

RETURN TO LIST OF CLASS TYPES

RETURN TO LIST OF LOCO NUMBERS

LOCOMOTIVES IN CLASS

Of the number made there are just 4 left in preservation. 2 were exported and all the rest were scrapped

REGION OR CLASS	1948 No.	1957 No.	TOPS No.	STATUS	LOCO FACTS
10	13137	D3137		Scrapped	D3137 - 13137
10	13138	D3138		Scrapped	D3138 - 13138
10	13139	D3139		Scrapped	D3139 - 13139
10	13140	D3140		Scrapped	D3140 - 13140
10	13141	D3141		Scrapped	D3141 - 13141
10	13142	D3142		Scrapped	D3142 - 13142
10	13143	D3143		Scrapped	D3143 - 13143
10	13144	D3144		Scrapped	D3144 - 13144
10	13145	D3145		Scrapped	D3145 - 13145
10	13146	D3146		Scrapped	D3146 - 13146
10	13147	D3147		Scrapped	D3147 - 13147
10	13148	D3148		Scrapped	D3148 - 13148
10	13149	D3149		Scrapped	D3149 - 13149
10	13150	D3150		Scrapped	D3150 - 13150
10	13151	D3151		Scrapped	D3151 - 13151
10		D3439		Scrapped	D3439
10		D3440		Scrapped	D3440
10		D3441		Scrapped	D3441
10		D3442		Scrapped	D3442
10		D3443		Scrapped	D3443
10		D3444		Scrapped	D3444
10		D3445		Scrapped	D3445
10		D3446		Scrapped	D3446
10		D3447		Scrapped	D3447
10		D3448		Scrapped	D3448
10		D3449		Scrapped	D3449
10		D3450		Scrapped	D3450
10		D3451		Scrapped	D3451
10		D3452		Preservation	D3452
10		D3453		Scrapped	D3453
10		D3473		Scrapped	D3473
10		D3474		Scrapped	D3474
10		D3475		Scrapped	D3475
10		D3476		Scrapped	D3476
10		D3477		Scrapped	D3477
10		D3478		Scrapped	D3478
10		D3479		Scrapped	D3479
10		D3480		Scrapped	D3480
10		D3481		Scrapped	D3481
10		D3482		Scrapped	D3482
10		D3483		Scrapped	D3483
10		D3484		Scrapped	D3484
10		D3485		Scrapped	D3485
10		D3486		Scrapped	D3486
10		D3487		Scrapped	D3487
10		D3488		Scrapped	D3488
10		D3489		Preservation	D3489
10		D3490		Scrapped	D3490
10		D3491		Scrapped	D3491
10		D3492		Scrapped	D3492
10		D3493		Scrapped	D3493
10		D3494		Scrapped	D3494
10		D3495		Scrapped	D3495
10		D3496		Scrapped	D3496
10		D3497		Scrapped	D3497
10		D3498		Scrapped	D3498
10		D3499		Scrapped	D3499
10		D3500		Scrapped	D3500
10		D3501		Scrapped	D3501
10		D3502		Scrapped	D3502
10		D3612		Scrapped	D3612
10		D3613		Scrapped	D3613
10		D3614		Scrapped	D3614
10		D3615		Scrapped	D3615
10		D3616		Scrapped	D3616
10		D3617		Scrapped	D3617
10		D3618		Scrapped	D3618
10		D3619		Scrapped	D3619
10		D3620		Scrapped	D3620
10		D3621		Scrapped	D3621
10		D3622		Scrapped	D3622
10		D3623		Scrapped	D3623
10		D3624		Scrapped	D3624
10		D3625		Scrapped	D3625
10		D3626		Scrapped	D3626
10		D3627		Scrapped	D3627
10		D3628		Scrapped	D3628
10		D3629		Scrapped	D3629
10		D3630		Scrapped	D3630
10		D3631		Scrapped	D3631
10		D3632		Scrapped	D3632
10		D3633		Scrapped	D3633
10		D3634		Scrapped	D3634
10		D3635		Scrapped	D3635
10		D3636		Scrapped	D3636
10		D3637		Scrapped	D3637
10		D3638		Scrapped	D3638
10		D3639		Exported	D3639
10		D3640		Scrapped	D3640
10		D3641		Scrapped	D3641
10		D3642		Scrapped	D3642
10		D3643		Scrapped	D3643
10		D3644		Scrapped	D3644
10		D3645		Scrapped	D3645
10		D3646		Scrapped	D3646
10		D3647		Scrapped	D3647
10		D3648		Scrapped	D3648
10		D3649		Exported	D3649
10		D3650		Scrapped	D3650
10		D3651		Scrapped	D3651
10		D4049		Scrapped	D4049
10		D4050		Scrapped	D4050
10		D4051		Scrapped	D4051
10		D4052		Scrapped	D4052
10		D4053		Scrapped	D4053
10		D4054		Scrapped	D4054
10		D4055		Scrapped	D4055
10		D4056		Scrapped	D4056
10		D4057		Scrapped	D4057
10		D4058		Scrapped	D4058
10		D4059		Scrapped	D4059
10		D4060		Scrapped	D4060
10		D4061		Scrapped	D4061
10		D4062		Scrapped	D4062
10		D4063		Scrapped	D4063
10		D4064		Scrapped	D4064
10		D4065		Scrapped	D4065
10		D4066		Scrapped	D4066
10		D4067		Preservation	D4067
10		D4068		Scrapped	D4068
10		D4069		Scrapped	D4069
10		D4070		Scrapped	D4070
10		D4071		Scrapped	D4071
10		D4072		Scrapped	D4072
10		D4073		Scrapped	D4073
10		D4074		Scrapped	D4074
10		D4075		Scrapped	D4075
10		D4076		Scrapped	D4076
10		D4077		Scrapped	D4077
10		D4078		Scrapped	D4078
10		D4079		Scrapped	D4079
10		D4080		Scrapped	D4080
10		D4081		Scrapped	D4081
10		D4082		Scrapped	D4082
10		D4083		Scrapped	D4083
10		D4084		Scrapped	D4084
10		D4085		Scrapped	D4085
10		D4086		Scrapped	D4086
10		D4087		Scrapped	D4087
10		D4088		Scrapped	D4088
10		D4089		Scrapped	D4089
10		D4090		Scrapped	D4090
10		D4091		Scrapped	D4091
10		D4092	--	Preservation	D4092
10		D4093		Scrapped	D4093
10		D4094		Scrapped	D4094
