This Diesel Mechanical Locomotive has a short wheelbase of 0-6-0.
It was designed for shunting and short-distance freight trips along branch lines.
They are almost identical to the Class 08 locomotives but have different gearing, giving a higher top speed of 27.5 mph at the expense of a lower tractive effort
SPECIFICATIONS
| POWER TYPE | Diesel Electric |
| BUILDER | British Railways, Darlington & Horwich |
| WHEELBASE | 0-6-0DE - 11ft 6in |
| DIMENSIONS | L. 29ft 3in - W.8ft 6in. - H.12ft 8.5 inch |
| WEIGHT | 49ton |
| WHEEL DIAMETER | 4ft 6in |
| ENGINE | english Electric 6KT |
| MAX TRACTIVE EFFORT | 25000lbf |
| TRAIN BRAKES | Vacuum/Air |
| BRAKE FORCE | 19 ton |
| FUEL CAPACITY | 668 Gals |
| POWER OUTPUT | 269hp |
| MAX SPEED | 27.5mph |
| BUILT / WITHDRAWN | 1959,61-62 / 1981-Present | No. BUILT | 26 plus 12 rebuilt in 1991-2 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
12 Further Class 9's were built from rebuilt Class 8 loco's in 1992 & 1993
09/01 - 7 numbered 09101-09107
09/02 - 5 numbered 09201-05
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|

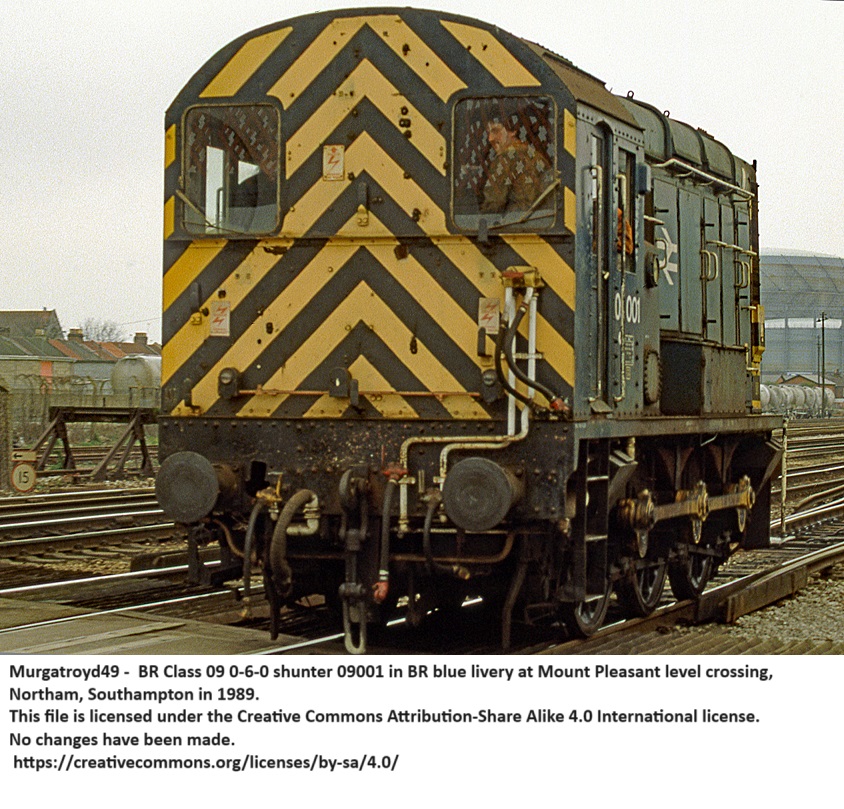

| 09 | D3665 | 09001 | Preservation | D3665 - 09001 | |||
| 09 | D3666 | 09002 | Industrial Use | D3666 - 09002 | |||
| 09 | D3667 | 09003 | Scrapped | D36667- 09003 | |||
| 09 | D3668 | 09004 | Preservation | D3668 - 09004 | |||
| 09 | D3669 | 09005 | Scrapped | D3669 - 09005 | |||
| 09 | D3670 | 09006 | Industrial Use | D3670 - 09006 | |||
| 09 | D3671 | 09007 | Industrial Use | D3671 - 09007 | |||
| 09 | D3719 | 09008 | Scrapped | D3719 - 09008 | |||
| 09 | D3720 | 09009 | Industrial Use | D3720 - 09009 | |||
| 09 | >D3721 | 09010 | Preservation | D3721 - 09010 | |||
| 09 | D4099 | 09011 | Scrapped | D4099 - 09011 | |||
| 09 | D4100 | 09012 | Preservation | D4100 - 09012 | |||
| 09 | D4101 | 09013 | Scrapped | D4101 - 09013 | |||
| 09 | D4102 | 09014 | Industrial Use | D4102 - 09014 | |||
| 09 | D4103 | 09015 | Preservation | D4103 - 09015 | |||
| 09 | D4104 | 09016 | Scrapped | D4104 - 09016 | |||
| 09 | D4105 | 09017 | 97806 | Preservation | D4105 - 09017 | ||
| 09 | D4106 | 09018 | Preservation | D4106 - 09018 | |||
| 09 | D4107 | 09019 | Preservation | D4107 - 09019 | |||
| 09 | D4108 | 09020 | Scrapped | D4108 - 09020 | |||
| 09 | D4109 | 09021 | Scrapped | D4109 - 09021 | |||
| 09 | D4110 | 09022 | Industrial Use | D4110 - 09022 | |||
| 09 | D4111 | 09023 | Industrial Use | D4111 - 09023 | |||
| 09 | D4112 | 09024 | Preservation | D4112 - 09024 | |||
| 09 | D4113 | 09025 | Preservation | D4113 - 09025 | |||
| 09 | D4114 | 09026 | Preservation | D4114 - 09026 | |||
| 09/1 | D4001 | 09101 | 08833 | Scrapped | D4001 - 09101 - 08833 | ||
| 09/1 | D4000 | 09102 | 08832 | Scrapped | D4000 - 09102 - 08832 | ||
| 09/1 | D3934 | 09103 | 08766 | Scrapped | D3934 - 09103 - 08766 | ||
| 09/1 | D3917 | 09104 | 08749 | Scrapped | D3917 - 09104 - 08749 | ||
| 09/1 | D4003 | 09105 | 08835 | Scrapped | D4003 - 09105 - 08835 | ||
| 09/1 | D3927 | 09106 | 08759 | Industrial Use | D3927 - 09106 - 08759 | ||
| 09/1 | D4013 | 09107 | 08845 | Preservation | D4013 - 09107 - 08845 | ||
| 09/2 | D3536 | 09201 | 08421 | Industrial Use | D3536 - 09201 - 08421 | ||
| 09/2 | D3900 | 09202 | 08732 | Scrapped | D3900 - 09202 - 08732 | ||
| 09/2 | D3949 | 09203 | 08781 | Scrapped | D3949 - 09203 - 08781 | ||
| 09/2 | D3884 | 09204 | 08717 | Industrial Use | D3884 - 09204 - 08717 | ||
| 09/2 | D3787 | 09205 | 08620 | Scrapped | D3787 - 09205 - 08620 |
