SPECIFICATIONS
| POWER TYPE | Diesel Electric |
| BUILDER | Ruston & Hornsby |
| WHEELBASE | 0-6-0DE - 8ft 7.5in |
| DIMENSIONS | L. 26ft 9.5in - W.8ft 6inch. - H.12ft 10 in |
| WEIGHT | 42.9 ton |
| WHEEL DIAMETER | 3ft 6in |
| ENGINE | Paxman 6RPHL |
| MAX TRACTIVE EFFORT | 28240lbf |
| TRAIN BRAKES | Vacuum/Air |
| BRAKE FORCE | |
| FUEL CAPACITY | 300 Gals |
| POWER OUTPUT | 275 hp |
| MAX SPEED | 27.5 mph |
| BUILT / WITHDRAWN | 1962 / 1973-80 | No. BUILT | 14 |
RETURN TO LIST OF CLASS TYPES
RETURN TO LIST OF LOCO NUMBERS
LOCOMOTIVES IN CLASS
| REGION OR CLASS |
REGION No. |
1948 No. | 1957 No. | TOPS No. | RENUMBER | STATUS | LOCO FACTS |
|---|---|---|---|---|---|---|---|
| 07 | D2985 | 07001 | Preservation | D2985 | |||
| 07 | - | D2986 | 07002 | Scrapped | D2986 | ||
| 07 | - | D2987 | 07003 | Scrapped | D2987 | ||
| 07 | - | D2988 | 07004 | Scrapped | D2988 | ||
| 07 | - | D2989 | 07005 | Preservation | D2989 | ||
| 07 | - | D2990 | 07006 | Scrapped | D2990 | ||

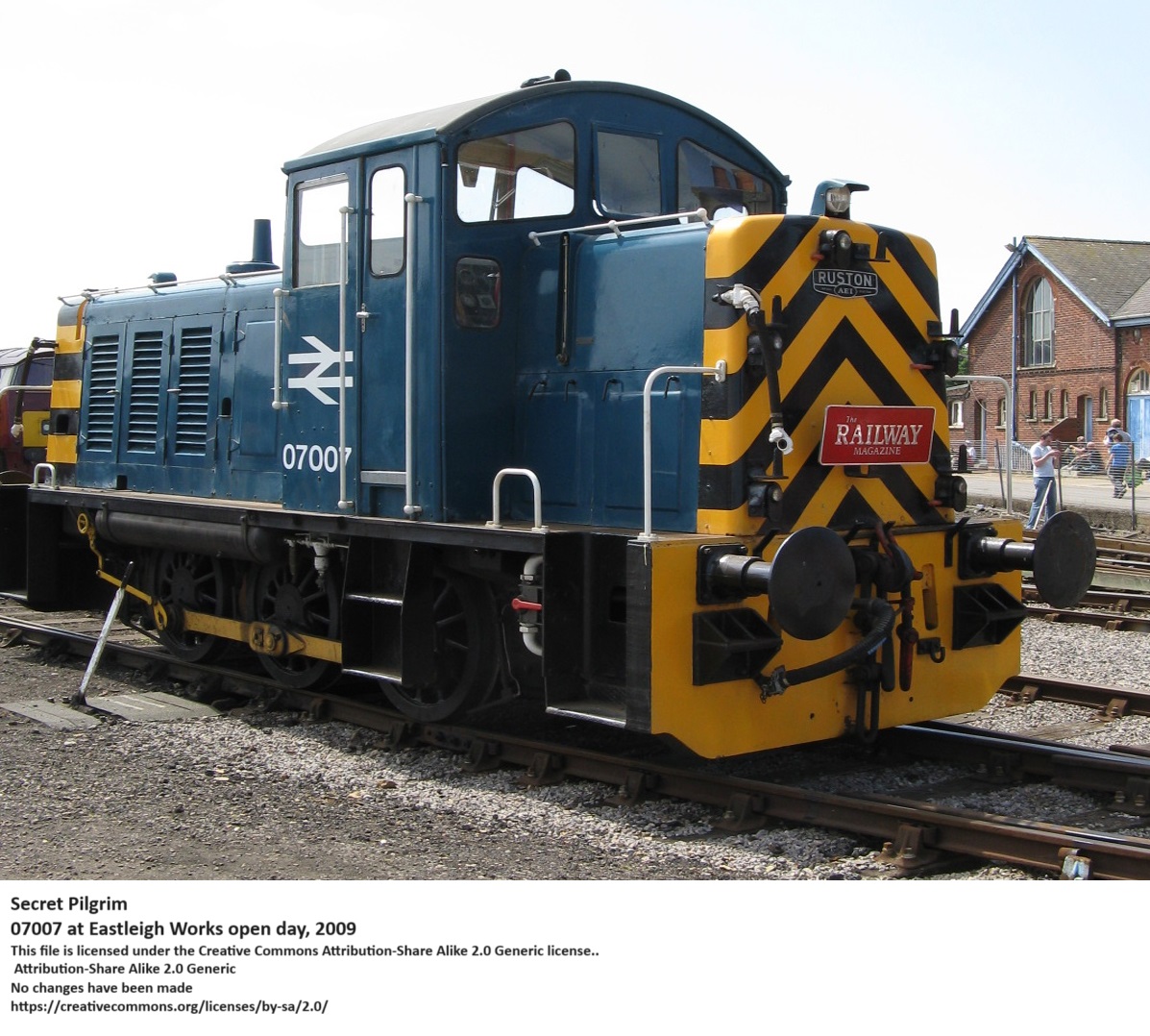

| 07 | - | D2991 | 07007 | Preservation | D2991 | ||
| 07 | - | D2992 | 07008 | Scrapped | D2992 | ||
| 07 | - | D2993 | 07009 | scrapped | D2993 | ||
| 07 | - | D2994 | 07010 | Preservation | D2994 | ||
| 07 | - | D2995 | 07011 | Preservation | D2995 | ||
| 07 | - | D2996 | 07012 | Preservation | D2996 | ||
| 07 | - | D2997 | 07013 | Preservation | D2997 | ||
| 07 | - | D2998 | 07014 | Scrapped | D2998 |
